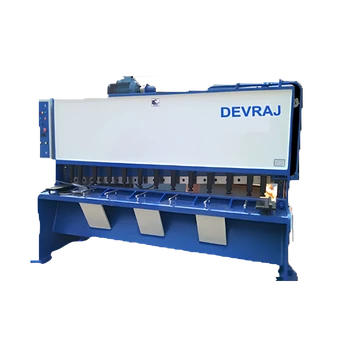

Hydraulic Shearing Machine Manufacturer
Devraj Engineering is a Hydraulic Shearing Machine Manufacturer making machines for cutting metal sheets and plates. These machines are used when sheets need to be cut into the required size before bending, welding, or other fabrication work.
The machine uses a hydraulic system to move the blade for cutting. It also has a variable rake angle adjustment, which can be set according to the sheet being cut. This helps reduce distortion while cutting and can also help increase blade life.
A motorized sheet positioning guide is provided for sheet positioning. It helps the operator place the sheet in the right position and repeat the same cutting size when needed.
Hydraulic Shearing Machine Supplier
The company supplies hydraulic shearing machines for different sheet metal cutting jobs.
The machines can be used for cutting mild steel, stainless steel, aluminium, and other metal sheets. The hydraulic system moves the blade, while the sheet stop which is at the back helps position the sheet before cutting.
The machine can be selected based on the type and thickness of the material, cutting length, and the work involved.
Features
Strong and rigid
machine body
Hydraulic blade
movement
Variable rake angle
adjustment
Motorized
back gauge
Straight-line
sheet cutting
PLC
control
Durable
cutting blades
Works with different
sheet thicknesses
Easy sheet
positioning
Simple operation
and maintenance
Applications
Sheet metal cutting
Plate cutting
Engineering workshops
Metal fabrication
Steelwork
Vehicle component manufacturing
Electrical panel manufacturing
Metal processing
General engineering work
Preparing sheets for bending and welding
| Machine Code | Length Shearing (MS) | Nominal Rake Angle (MS) | Max Rake Angle (MS) | Nominal Rake Angle (SS) | Max Rake Angle (SS) | Angle | Rake Angle Range | Stroke/Minute (Min & Max Rake Angle) | Hold Downs | Holding Force (Kg) | Power (HP) | Packing Dimension (LxWxH) (mm) | Approx Weight (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DHSM-220 | 2000 | 2 | NA | 1 | NA | 1* | 0.5-2* | 22 | 9 | 1300 | 3 | 2580 x 1400 x 1400 | 2000 |
| DHSM-225 | 2500 | 2 | 3.15 | 1 | 1.6 | 1* | 0.5-2* | 22-10 | 13 | 1800 | 3 | 2900 x 1600 x 1500 | 2500 |
| DHSM-230 | 3000 | 2 | 3.15 | 1 | 1.6 | 1* | 0.5-2* | 18-8 | 15 | 1800 | 3 | 3400 x 1600 x 1500 | 2800 |
| DHSM-315 | 1500 | 3.15 | 4 | 2 | 3 | 1*15' | 0.5-2* | 24-10 | 8 | 2000 | 5 | 2250 x 1850 x 2050 | 2000 |
| DHSM-320 | 2000 | 3.15 | 4 | 2 | 3 | 1*15' | 0.5-2* | 26-14 | 11 | 2000 | 5 | 2700 x 1550 x 1800 | 2700 |
| DHSM-325 | 2500 | 3.15 | 4 | 2 | 3 | 1*15' | 0.5-2* | 28-13 | 13 | 2500 | 5 | 3200 x 1850 x 1950 | 3500 |
| DHSM-330 | 3000 | 3.15 | 4 | 2 | 3 | 1*15' | 0.5-2* | 24-9 | 15 | 2500 | 5 | 3700 x 1850 x 1950 | 4000 |
| DHSM-415 | 1500 | 4 | 6 | 3 | 4 | 1*37' | 0.5-3* | 24-10 | 8 | 4500 | 5 | 2500 x 1850 x 2050 | 3200 |
| DHSM-420 | 2000 | 4 | 6 | 3 | 4 | 1*37' | 0.5-3* | 24-10 | 14 | 6200 | 7.5 | 2750 x 1850 x 2050 | 3500 |
| DHSM-425 | 2500 | 4 | 6 | 3 | 4 | 1*37' | 0.5-3* | 22-8 | 13 | 8000 | 7.5 | 3300 x 2250 x 2400 | 5000 |
| DHSM-430 | 3000 | 4 | 6 | 3 | 4 | 1*37' | 0.5-3* | 22-8 | 15 | 10000 | 10 | 3700 x 2250 x 2400 | 6000 |
| DHSM-440 | 4000 | 4 | 8 | 3 | 4 | 1*45' | 0.5-3* | 18-6 | 20 | 12000 | 10 | 4500 x 2250 x 2400 | 8100 |
| DHSM-615 | 1500 | 6 | 8 | 4 | 6 | 1*45' | 0.5-3* | 24-8 | 6 | 6500 | 10 | 2250 x 1900 x 2100 | 4000 |
| DHSM-620 | 2000 | 6 | 8 | 4 | 6 | 1*45' | 0.5-3* | 22-7 | 11 | 6500 | 10 | 2750 x 1900 x 2100 | 4300 |
| DHSM-625 | 2500 | 6 | 8 | 4 | 6 | 1*45' | 0.5-3* | 28-8 | 13 | 8000 | 10 | 3250 x 2000 x 2100 | 5000 |
| DHSM-630 | 3000 | 6 | 8 | 4 | 6 | 1*45' | 0.5-3* | 28-9 | 15 | 10000 | 15 | 3500 x 2000 x 2300 | 6000 |
| DHSM-640 | 4000 | 6 | 8 | 4 | 6 | 2* | 0.5-3* | 24-6 | 20 | 13600 | 20 | 4800 x 2250 x 2500 | 8200 |
| DHSM-815 | 1500 | 8 | 10 | 6 | 8 | 2* | 0.5-3* | 22-10 | 8 | 10500 | 15 | 2250 x 2050 x 2200 | 5200 |
| DHSM-820 | 2000 | 8 | 10 | 6 | 8 | 2* | 0.5-3* | 18-8 | 11 | 12000 | 15 | 2750 x 2050 x 2200 | 6000 |
| DHSM-825 | 2500 | 8 | 10 | 6 | 8 | 2* | 0.5-3* | 24-8 | 13 | 16500 | 20 | 3300 x 2350 x 2600 | 7500 |
| DHSM-830 | 3000 | 8 | 10 | 6 | 8 | 2* | 0.5-3* | 20-6 | 15 | 18500 | 20 | 3800 x 2350 x 2600 | 9000 |
| DHSM-840 | 4000 | 8 | 10 | 6 | 8 | 2* | 0.5-3* | 20-8 | 20 | 23000 | 25 | 4800 x 2350 x 2600 | 12500 |
| DHSM-1015 | 1500 | 10 | 13 | 8 | 10 | 2 | 0.5-3 | 20-10 | B | 10500 | 15 | 2250 x 2050 x 2300 | 6000 |
| DHSM-1020 | 2000 | 10 | 13 | 8 | 10 | 2* | 0.5-3* | 18-0 | 11 | 13000 | 15 | 2750 x 2050 x 2300 | 7000 |
| DHSM-1020 | 2000 | 10 | 13 | 8 | 10 | 2* | 0.5-3* | 18-0 | 11 | 13000 | 15 | 2750 x 2050 x 2300 | 7000 |
| DHSM-1025 | 2500 | 10 | 13 | 8 | 10 | 2* | 0.5-3* | 24-8 | 13 | 17500 | 20 | 3300 x 2500 x 2800 | 9000 |
| DHSM 1320 | 2000 | 13 | 16 | 10 | 13 | 2* | 0.5-3* | 13-5 | 11 | 16500 | 20 | 2750 x 2200 x 2500 | 7000 |
| DHSM-1325 | 2500 | 13 | 16 | 10 | 13 | 2* | 0.5-3* | 15-10 | 13 | 32000 | 25 | 3350 x 2600 x 2800 | 15000 |
| DHSM 1330 | 3000 | 13 | 16 | 10 | 13 | 2* | 0.5-3* | 12-6 | 15 | 37000 | 25 | 3800 x 2600 x 2800 | 12000 |
| DHSM-1340 | 4000 | 13 | 16 | 10 | 13 | 2* | 0.5-3* | 10-4 | 20 | 22000 | 30 | 4850 x 2200 x 2800 | 15500 |
| DHSM-1620 | 2000 | 16 | 20 | 13 | 16 | 2* | 0.5-3* | 13-7 | 11 | 22000 | 25 | 3750 x 2200 x 2600 | 12000 |
| DHSM-1625 | 2500 | 16 | 20 | 13 | 16 | 2* | 0.5-3* | 15-8 | 13 | 40000 | 30 | 3500 x 2600 x 2900 | 15000 |
| DHSM-1630 | 3000 | 16 | 20 | 13 | 16 | 2* | 0.5-3* | 12-6 | 15 | 43500 | 30 | 4000 x 2600 x 2000 | 17000 |
| DHSM-1640 | 4000 | 16 | 20 | 13 | 16 | 2* | 0.5-3* | 10-4 | 20 | 30000 | 30 | 5100 x 2750 x 2900 | 20000 |
| DHSM-2020 | 2000 | 20 | 25 | 16 | 20 | 2* | 0.5-3* | 16-8 | 11 | 32000 | 40 | 2900 x 2500 x 2600 | 17000 |
| DHSM-2025 | 2500 | 20 | 25 | 16 | 20 | 2* | 0.5-3* | 15-8 | 13 | 48000 | 40 | 3500 x 2750 x 3000 | 18000 |
| DHSM-2030 | 3000 | 20 | 25 | 16 | 20 | 2* | 0.5-3* | 12-6 | 15 | 52000 | 40 | 4000 x 2750 x 3000 | 20000 |
| DHSM-2040 | 4000 | 20 | 25 | 16 | 20 | 2* | 0.5-3* | 10-4 | 20 | 30000 | 50 | 5100 x 2800 x 3000 | 24000 |
FAQs
1. What is a hydraulic shearing machine used for?
A hydraulic shearing machine is used to cut metal sheets and plates into the required sizes. It is commonly used for mild steel, stainless steel, aluminium and other sheet metal cutting work.
2. How does a hydraulic shearing machine work?
The machine uses hydraulic pressure to move the cutting blade against the metal sheet. The sheet is held in position, and the blade cuts it cleanly along the required cutting line.
3. What types of sheets can be cut with a hydraulic shearing machine?
Depending on the machine capacity, it can be used for cutting materials such as mild steel, stainless steel and aluminium. The maximum thickness depends on the machine model and specifications.
4. What are the main advantages of a hydraulic shearing machine?
It offers consistent cutting performance, good control over the cutting process and can handle regular sheet and plate cutting work in industrial production.
5. How should a hydraulic shearing machine be maintained?
Regular maintenance includes checking the hydraulic system, inspecting the blades, keeping the machine clean and checking moving parts for wear. Proper maintenance helps keep the machine working smoothly and reduces unexpected downtime.
