H-Frame Hydraulic Press Manufacturer
Devraj Engineering is an H-Frame Hydraulic Press Manufacturer supplying hydraulic presses for different industrial and workshop jobs. The H-frame structure gives the machine good support when working with heavy loads. Different capacities and specifications are available to meet different pressing requirements.
H-Frame Hydraulic Press Supplier
The company supplies H-Frame Hydraulic Presses for fabrication, manufacturing, engineering, automotive, and other heavy-duty work. The machine can be selected based on the required pressing capacity, working size, stroke, and motor specifications. The range listed by the company is available from 5 to 300 tonnes.
Features
Strong and rigid H-frame construction
Suitable for
heavy pressing work
Hydraulic system for controlled pressing
Good load-
bearing capacity
Stable during
operation
Available in
different capacities
Working specifications
can be selected as needed
Suitable for regular industrial use
Simple and
efficient operation
Suitable for different metalworking jobs
Application
Metal Forming
Used to shape metal parts by applying the required pressure
Heavy-duty stamping
Suitable for stamping jobs that need higher pressing force
Metal straightening
Helps straighten bent plates, shafts, bars, and other metal parts.
Punching
Used for making holes and openings in metal parts.

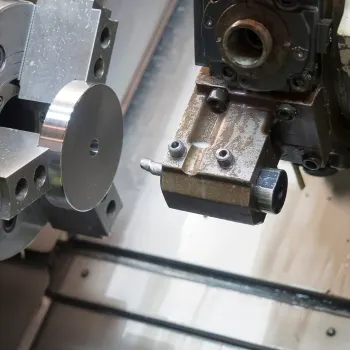

Die pressing
Suitable for pressing work that uses dies to shape or form parts.
Cold Forging
Suitable for certain cold-forging jobs that require high force.
Repair and maintenance
Helpful for removing, fitting, straightening, and servicing machine parts.
Bearing fitting
Can be used to install or remove bearings from machine parts.
Assembly work
Useful for fitting parts together where pressure is needed.
Industrial fabrication
Used for different pressing and forming jobs in fabrication work.
| Capacity (Tonnes) | Distance Between Column (mm) | Distance Between Ram to Bed (mm) | Stroke (mm) | Motor H.P. |
|---|---|---|---|---|
| 5 | 160 × 400 | 125 × 500 | 100 | 2 |
| 15 | 200 × 750 | 150 × 650 | 150 | 3 |
| 25 | 280 × 800 | 175 × 800 | 175 | 3 |
| 40 | 375 × 950 | 175 × 900 | 175 | 3 |
| 60 | 425 × 1010 | 175 × 900 | 200 | 5 |
| 75 | 450 × 1125 | 175 × 900 | 200 | 5 |
| 100 | 500 × 1200 | 175 × 900 | 200 | 5 |
| 150 | 600 × 1300 | 200 × 1000 | 225 | 7.5 |
| 200 | 700 × 1400 | 400 × 1200 | 225 | 10 |
| 250 | 800 × 1500 | 400 × 1200 | 250 | 15 |
| 300 | 900 × 1600 | 400 × 1200 | 250 | 20 |
FAQs
1. What is an H-Frame Hydraulic Press Machine used for?
An H-Frame Hydraulic Press Machine is used for pressing, bending, straightening, forming and other heavy-duty industrial operations.
2. What capacities are available in H-Frame Hydraulic Press Machines?
H-Frame Hydraulic Press Machines are available in different capacities, from 5 tonnes to 300 tonnes, depending on the model.
3. What materials can be worked on with an H-Frame Hydraulic Press Machine?
It can be used for working with materials such as mild steel, stainless steel and other metals, depending on the machine capacity and application.
4. What are the main features of an H-Frame Hydraulic Press Machine?
The main features include a rigid H-frame structure, hydraulic power operation, different pressure capacities and suitable working space for various pressing jobs.
5. How is the right H-Frame Hydraulic Press Machine selected?
The machine is selected based on the required pressing capacity, work-piece size, and type of operation, stroke length and available working space.
