Plate Bending Machine Manufacturer
Devraj Engineering is a Plate Bending Machine Manufacturer offering industrial machines for bending and forming metal plates. Since 1971, the company provides hydraulic plate bending machines designed for smooth, accurate, and consistent plate forming.
The machines can be supplied in different configurations according to plate thickness, bending diameter, material, and production requirements. They are suitable for both standard fabrication work and demanding heavy-duty industrial operations.
Plate Bending Machine Supplier
As a Plate Bending Machine Supplier, Devraj Engineering provides machines for a wide range of industries, including fabrication, construction, pressure vessel manufacturing, shipbuilding, and heavy engineering.

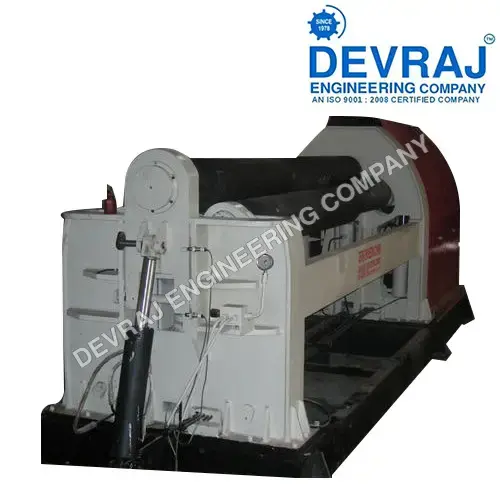

The range includes 3-roller and 4-roller hydraulic plate bending machines, along with mechanical models. Different machine configurations can be selected depending on the type of plate, required bending shape, thickness, and production volume.
Features
Heavy-duty and
rigid machine construction
Accurate and
consistent plate bending
Smooth rolling
operation
Hydraulic system for
controlled bending
Durable rollers for
regular industrial use
3-roller and
4-roller configurations
Suitable for different plate
thicknesses and bending diameters
Can process steel, stainless steel
aluminium, and other metals
Simple operation
and maintenance
Suitable for heavy-duty fabrication requirements
Applications

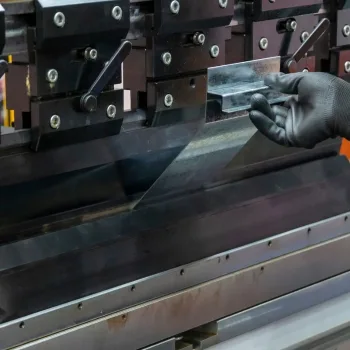

Metal plate bending and forming
Cylindrical shape forming
Conical shape forming

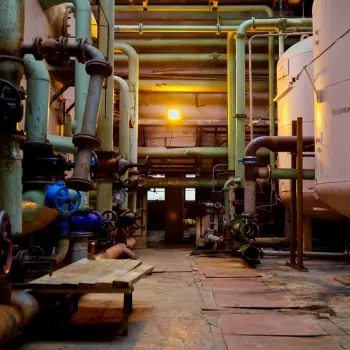

Pressure vessel manufacturing
Steel fabrication
Pressing

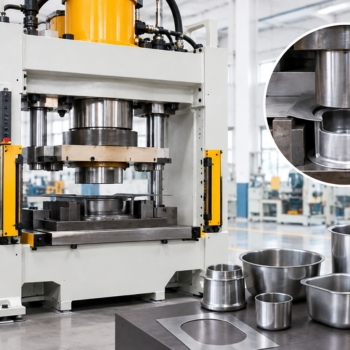

Shallow drawing
Construction equipment manufacturing
Heavy engineering
Metal processing
Industrial fabrication
Production of curved and rolled components
| Model Type | Rolling Capacity (MS Plate) | Working Width (mm) | Top Roll Diameter (mm) | Side Roll Diameter (mm) | Motor Power (HP) | Notes |
|---|---|---|---|---|---|---|
| PBM 4 x 1500 | 4 mm | 1500 | 120 | 100 | 3 HP | Suitable for light fabrication work |
| PBM 6 x 2000 | 6 mm | 2000 | 140 | 120 | 5 HP | Ideal for medium-duty rolling applications |
| PBM 8 x 2500 | 8 mm | 2500 | 170 | 140 | 7.5 HP | Used in general engineering industries |
| PBM 10 x 2500 | 10 mm | 2500 | 190 | 160 | 10 HP | Suitable for fabrication workshops |
| PBM 12 x 3000 | 12 mm | 3000 | 220 | 180 | 15 HP | Heavy-duty industrial applications |
| Hydraulic PBM 16 x 3000 | 16 mm | 3000 | 260 | 220 | 20 HP | Hydraulic operation for higher productivity |
| Hydraulic PBM 20 x 3000 | 20 mm | 3000 | 300 | 250 | 25 HP | Pressure vessel and tank manufacturing |
| Hydraulic PBM 25 x 3200 | 25 mm | 3200 | 350 | 300 | 30 HP | Structural steel and heavy fabrication |
| CNC Plate Bending Machine 30 x 4000 | 30 mm | 4000 | 400 | 350 | 40 HP | Automated rolling for precision applications |
| Heavy Duty CNC PBM 40 x 4000 | 40 mm | 4000 | 450 | 400 | 50 HP | Large-scale fabrication and industrial projects |
FAQs
1. What is a Plate Bending Machine used for?
A Plate Bending Machine is used to bend metal plates into different shapes, such as cylinders, curves, and cones. It is commonly used in fabrication and manufacturing work.
2. What types of Plate Bending Machines are available?
Plate Bending Machines are available in different types, including 3-roll and 4-roll machines. The right type depends on the plate size, thickness, and type of bending work.
3. What materials can be bent using a Plate Bending Machine?
A Plate Bending Machine can be used for materials such as mild steel, stainless steel, aluminium, and other metals, depending on the machine’s capacity.
4. Where are Plate Bending Machines commonly used?
These machines are used in fabrication units, manufacturing plants, construction work, pressure vessel production, and other metalworking industries.
5. How do you select the right Plate Bending Machine?
The plate thickness, plate width, required bending shape, bending radius, and production needs should be checked before selecting a machine.
