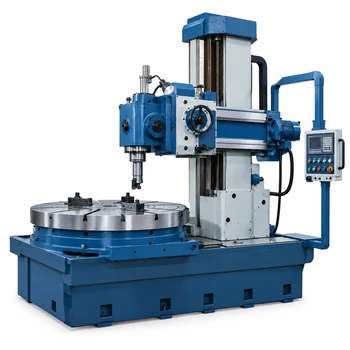

Boring Machine Manufacturer
Devraj Engineering is a Boring Machine Manufacturer offering industrial machines designed for enlarging, finishing, and accurately machining holes in heavy metal components. Since 1971, the company has manufactured and supplied industrial equipment for various engineering and metalworking requirements.
The machines are designed to handle large and heavy metal parts while maintaining accuracy, repeatability, and surface finish. They are suitable for demanding machining operations where rigidity and precision are important.
Boring Machine Supplier
As a Boring Machine Supplier, Devraj Engineering supplies machines for heavy engineering, automobile, aerospace, construction, power generation, railway, shipbuilding, mining, and steel industries. The machines are suitable for machining large components that require accurate boring and finishing operations.
Different machine specifications can be selected according to spindle size, table capacity, metal part dimensions, machining travel, and production requirements.
Features
Heavy-duty and rigid
machine construction
High-precision
boring performance
Suitable for large and
heavy metal parts
Stable operation with
reduced vibration
Accurate hole enlargement
and finishing
Good surface finish
and repeatability
Suitable for demanding
machining operations
Designed for different
component sizes
Durable components for regular
industrial use
Suitable for heavy engineering
applications
Available with different control
and configuration options
Applications

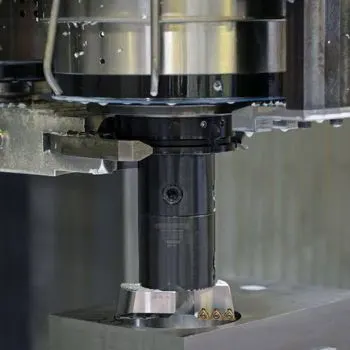

Enlarging existing holes
Precision hole machining

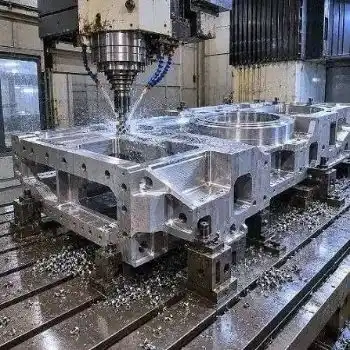

Heavy component machining

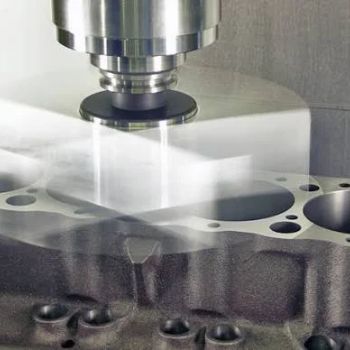

Engine block machining
Gearbox machining
Turbine component machining

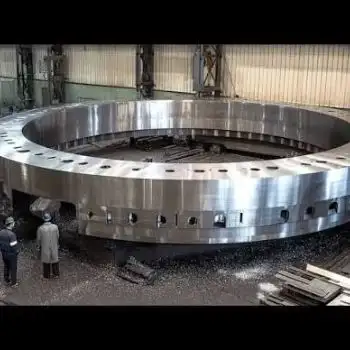

Large ring machining
Automobile component manufacturing

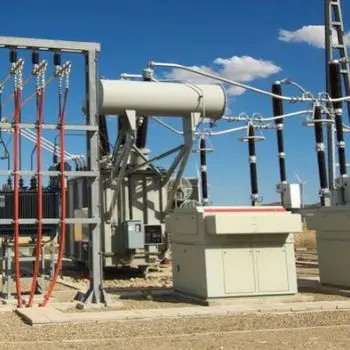

Power generation equipment
Railway component machining
Shipbuilding

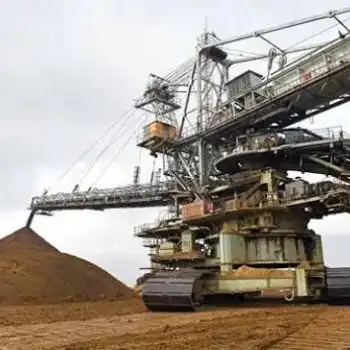

Mining equipment manufacturing
Heavy engineering

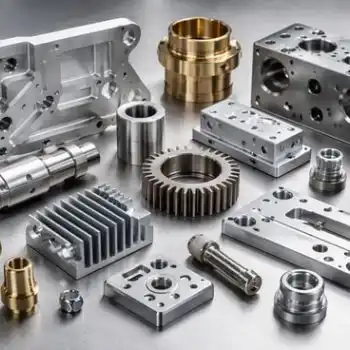

Steel and industrial component machining
| Model No. | Unit | SVT-2 | SVT-2.5 | SVT-3 | SVT-4 | SVT-5 | SVT-6 |
|---|---|---|---|---|---|---|---|
| Table Diameter | MM | 2000 | 2500 | 3000 | 4000 | 5000 | 6000 |
| Side Head Below The Table Top | MM | 2250 | 2750 | 3500 | 4500 | 5500 | 6500 |
| Max. Turning Dia with Side Head in Working Position | MM | 2050 | 2550 | 3300 | 4300 | 5300 | 6300 |
| Max. Working Height Under Cross Rail | MM | 1500 | 1500 | 2000 | 2000 | 2500 | 2500 |
| Vertical Travel of Ram Head | MM | 700 | 800 | 900 | 1000 | 1000 | 1000 |
| Swivel Angle of Ram Head | DEG | 45 | 45 | 45 | 45 | 45 | 45 |
| Horizontal Travel of Side Head | MM | 700 | 800 | 900 | 1000 | 1000 | 1000 |
| Max. Vertical Travel of Side Head | MM | 1250 | 1250 | 1750 | 1750 | 2000 | 2000 |
| Table Speed | RPM | STEPLess Infinitely Variable Speeds with AC Variable Frequency Drive | |||||
| Feeds Horizontal & Vertical | NO. | 6 | 6 | 6 | 6 | 6 | 6 |
| Range | MM/MIN. | 1-6.5 | 1-6.5 | 1-6.5 | 1-6.5 | 1-6.5 | 1-6.5 |
| Main Motor | H.P. | 25 | 30 | 40 | 40 | 50 | 60 |
| Approx. Weight of Machine | M.T. | 21 | 25 | 35 | 45 | 55 | 70 |
FAQs
1. Why is a Boring Machine used?
A Boring Machine is used to enlarge and finish existing holes in large metal components. It helps achieve the required hole size, accuracy and surface finish.
2. What type of components can be machined on a Boring Machine?
A Boring Machine can be used for large components such as engine blocks, gearboxes, turbine parts, rings and other heavy metal components that need accurate hole machining.
3. What industries use Boring Machines?
Boring Machines are commonly used in engineering, automobile, aerospace, construction, power generation, railway, shipbuilding, mining and steel industries.
4. What factors should be considered when selecting a Boring Machine?
The spindle size, table capacity, component dimensions and machining travel should be considered. The type of machining work and production requirements also help determine the right machine.
5. What operations can be performed using a Boring Machine?
A Boring Machine can be used for enlarging existing holes, precision hole machining and finishing. It is also used for machining large components that require accurate and consistent results.
