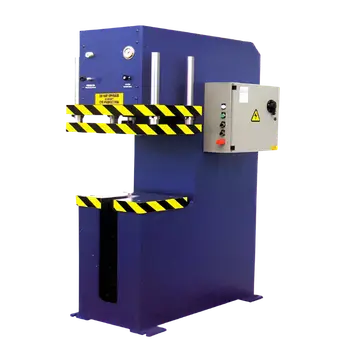

C-Frame Hydraulic Press Manufacturer
Devraj Engineering is a C-Frame Hydraulic Press Manufacturer offering hydraulic presses designed for metal forming, pressing, stamping, riveting, assembly, and other industrial operations. The C-shaped frame provides open access to the working area from three sides, making it easier to load and unload work pieces and suitable for applications where quick operation and accessibility are important.
C-Frame Hydraulic Press Supplier
As a C-Frame Hydraulic Press Supplier, Devraj Engineering supplies presses for fabrication units, manufacturing industries, production lines, and maintenance departments. The machines are available in different capacities, ranging from 5 to 200 tonnes, with variations in bed size, throat depth, daylight, stroke, and motor power to meet different application requirements.
Features
C-shaped
open frame design
Three-sided access
to the working area
Sturdy and heavy -duty construction
High operating -
efficiency
Energy-efficient
operation
Controlled hydraulic
operation
Easy loading and
unloading of work pieces
Suitable for high - volume operations
Large
working area
Different capacity options from 5 to 200 tonnes
Available with different stroke
and motor specifications
Applications
Metal Forming
straightening
Punching
Stamping
Riveting
Assembly operations
Pressing
Shallow drawing
Blanking

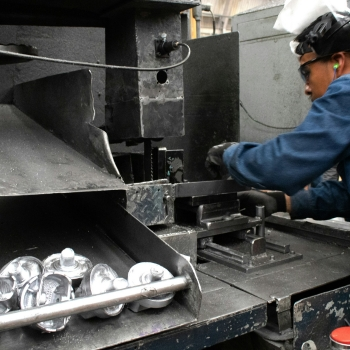

Trimming of metal parts
Component manufacturing
Tool and die operations
| Capacity in Tonnes | Bed Size (mm) | Throat (mm) | Day-Light (mm) | Stroke (mm) | Motor H.P. |
|---|---|---|---|---|---|
| 5 | 235 x 235 | 115 | 210 | 100 | 2 |
| 15 | 300 x 300 | 150 | 225 | 150 | 3 |
| 25 | 375 x 375 | 200 | 300 | 175 | 3 |
| 40 | 450 x 450 | 250 | 350 | 175 | 3 |
| 60 | 525 x 525 | 300 | 400 | 200 | 5 |
| 75 | 600 x 600 | 325 | 450 | 200 | 5 |
| 100 | 675 x 675 | 350 | 500 | 200 | 5 |
| 150 | 750 x 750 | 375 | 550 | 225 | 7.5 |
| 200 | 750 x 780 | 400 | 600 | 225 | 10 |
FAQs
1. What is a C-Frame Hydraulic Press Machine?
A C-Frame Hydraulic Press Machine is a hydraulic press with an open three-sided frame. This design gives better access to the working area and makes it easier to load and remove components.
2. What materials can be pressed using a C-Frame Hydraulic Press Machine?
It can be used for materials such as mild steel, stainless steel, aluminium and other metals, depending on the machine capacity and application.
3. What are the common applications of a C-Frame Hydraulic Press Machine?
It is commonly used for pressing, bending, punching, straightening, forming, stamping and other metalworking operations.
4. What is the advantage of the C-frame design?
The open-frame design provides easy access from three sides. This makes component handling more convenient, especially when working with different sizes and shapes.
5. How do you select the right C-Frame Hydraulic Press Machine?
The machine should be selected based on the required pressing force, component size, stroke, working area and type of operation.
