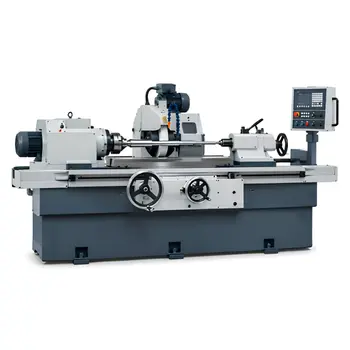

Cylindrical Grinding Machine Manufacturer
Devraj Engineering is a manufacturer supplying grinding machines for cylindrical components. Established in 1971, the company manufactures and supplies industrial machinery for different engineering and metalworking applications.
The Cylindrical Grinding Machine is built to maintain the required dimensions and provide a smooth surface finish during grinding. The range includes external, internal, and universal cylindrical grinding machines, making them suitable for different types of grinding work.
Cylindrical Grinding Machine Supplier
Devraj Engineering supplies cylindrical grinding machines for different types of engineering and industrial work. The machines are used for grinding cylindrical parts where a smooth surface and proper size are required.
The company supplies machines for applications in automotive, bearing, tool room, heavy engineering, and general engineering industries. Depending on the work, machines are available for external, internal, and universal cylindrical grinding.
Different sizes and machine options are available to suit the component being worked on and the production requirement. Customers can select a suitable machine based on the grinding diameter, length, material, and type of work involved.
Features
High-precision grinding
performance
Suitable for achieving
smooth surface finishes
Consistent and repeatable
grinding results
Rigid machine
construction
Balanced spindle
for stable operation
Suitable for different
metal materials
Variable
speed control
Adjustable grinding
wheel settings
Available for external, internal,
and universal grinding
Suitable for different
component sizes
Designed for regula
industrial use
Low wear and
maintenance requirements
Applications
Cylindrical component grinding

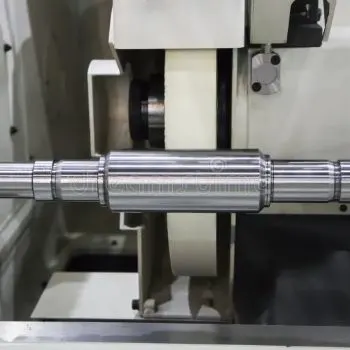

Shaft grinding

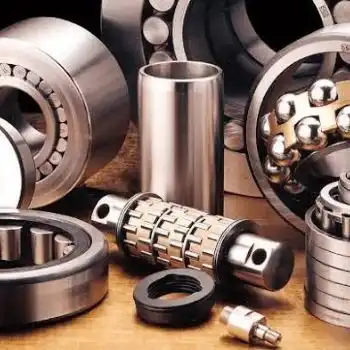

Bearing component manufacturing

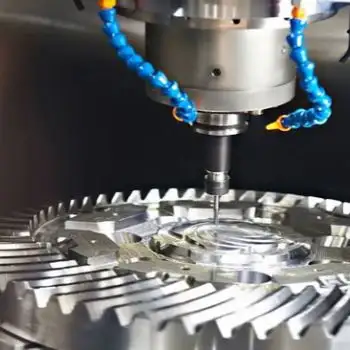

Precision metal finishing

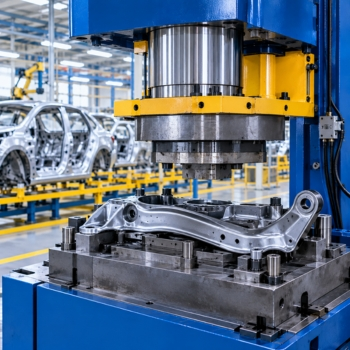

Automotive component manufacturing

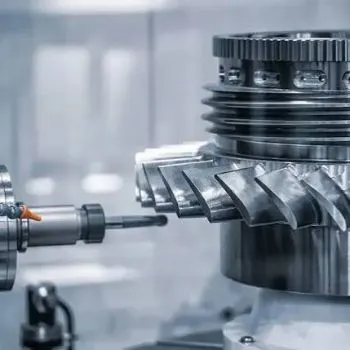

Aerospace component machining

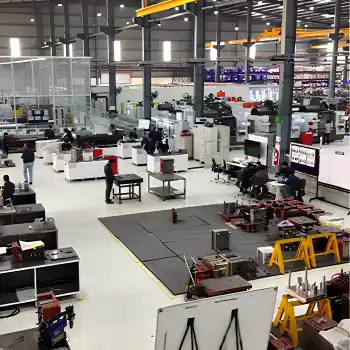

Tool room operations
Heavy engineering
General fabrication

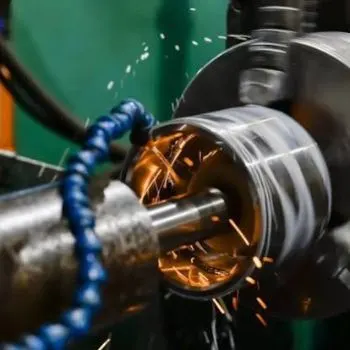

Grinding of steel and alloy components
Surface finishing
Precision machining applications
| Model | Center Height (mm) | Max. Grinding Length (mm) | Max. Grinding Diameter (mm) | Grinding Wheel Size (mm) | Work Head Speed (RPM) | Table Traverse (mm) | Wheel Head Motor (HP) | Work Head Motor (HP) | Machine Weight (Approx. kg) |
|---|---|---|---|---|---|---|---|---|---|
| DCG-350 | 130 | 500 | 250 | 400 x 50 x 127 | 30 - 300 | 550 | 3 | 1 | 1800 |
| DCG-500 | 150 | 750 | 300 | 500 x 50 x 203 | 30 - 500 | 800 | 5 | 1.5 | 2500 |
| DCG-750 | 175 | 1000 | 350 | 500 x 75 x 203 | 40 - 800 | 1100 | 5 | 2 | 3200 |
| DCG-1000 | 200 | 1250 | 400 | 600 x 75 x 305 | 40 - 1000 | 1300 | 7.5 | 2 | 4000 |
| DCG-1500 (CNC) | 200 | 1500 | 400 | 600 x 75 x 305 | 50 - 1500 (Variable) | 1600 | 7.5 | 3 | 4500 |
FAQs
1. What is a Cylindrical Grinding Machine used for?
A Cylindrical Grinding Machine is used to grind cylindrical metal parts and bring them to the required size and finish. It is commonly used for shafts, bearings and other round components.
2. What types of grinding can be done with a Cylindrical Grinding Machine?
Depending on the machine type, it can be used for external, internal and universal cylindrical grinding. The right type is selected based on the component and the grinding work required.
3. What materials can be ground using a Cylindrical Grinding Machine?
Cylindrical grinding machines can be used for materials such as steel and different metal alloys. The grinding wheel and machine settings are selected according to the material and the required finish.
4. Where are Cylindrical Grinding Machines commonly used?
These machines are commonly used in automotive, bearing, tool room, heavy engineering and general engineering industries. They are also used where accurate dimensions and smooth finishes are required.
5. What should be considered when selecting a Cylindrical Grinding Machine?
The grinding diameter, component length, material and type of grinding work should be considered. Production requirements and the required level of accuracy are also important when selecting the machine.
