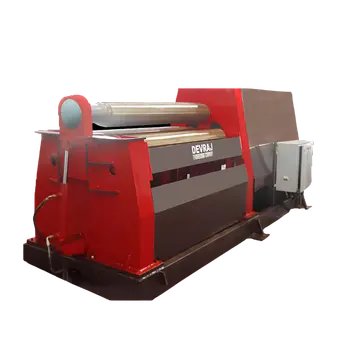

3-Roll Plate Bending Machine

3-Roll Plate Bending Machine Manufacturer

Devraj Engineering is a 3-Roll Plate Bending Machine Manufacturer offering mechanical and hydraulic plate bending machines for metal forming and rolling applications. The machines are designed to bend metal plates into cylindrical, and curved shapes while providing stable and consistent performance. Since 1971, the company has been manufacturing industrial equipment.

3-Roll Plate Bending Machine Supplier

As a 3-Roll Plate Bending Machine Supplier, The company supplies machines for fabrication workshops, heavy engineering units, construction-related industries, pressure vessel manufacturing, piping, and general metalworking applications. The hydraulic version uses hydraulic cylinders and a power pack for controlled roller movement and bending pressure.

Features

Three precision-engineered rollers
for controlled plate forming

Robust and rigid
machine construction

Suitable for cylindrical and conical bending

Hydraulic operation available
for controlled bending

EN-8/9 rollers for
strength and durability

Planetary gearbox for
reliable power transmission

Hydraulic cylinders and power
pack in hydraulic models

PLC control panel with movable
desk for hydraulic models

Foundation-aligned
base frame

Suitable for different plate
thicknesses and sizes

Designed for consistent
bending accuracy

Relatively simple
operation and maintenance

Applications

Model No. Length of Working (mm) Max Thickness (mm) Pre-Bending Thickness (mm) Top Roll (mm) Bottom Rolls (mm) Motor Power (HP) Packing Dimension (Length × Height × Width) Machine Weight (Approx) (Kg)
DH3 20/06 2100 6 4 160 180 5 4000 × 1100 × 1050 2100
DH3 20/08 2100 8 6 190 180 5 4000 × 1100 × 1050 3100
DH3 20/10 2100 10 8 210 190 7.5 4000 × 1100 × 1050 4000
DH3 20/13 2100 13 10 230 210 7.5 4050 × 1275 × 1350 4400
DH3 20/16 2100 16 13 270 250 10 4200 × 1350 × 1450 5250
DH3 20/20 2100 20 16 300 270 15 4400 × 1600 × 1650 7100
DH3 20/25 2100 25 20 330 300 15 4400 × 1600 × 1650 8900
DH3 20/30 2100 30 25 360 330 20 4500 × 2000 × 1900 9600
DH3 20/40 2100 40 30 390 360 25 4800 × 2150 × 1900 17500
DH3 20/45 2100 45 35 430 390 30 5100 × 2400 × 2200 19800
DH3 20/50 2100 50 40 460 420 35 5200 × 2450 × 2250 25000
DH3 20/60 2100 60 50 510 460 40 5300 × 2550 × 2300 32500
DH3 20/70 2100 70 60 540 510 50 5500 × 2650 × 2400 36000
DH3 25/06 2600 4 6 190 170 5 4450 × 1150 × 1050 3300
DH3 25/08 2600 6 6 210 190 5 4450 × 1150 × 1050 4200
DH3 25/10 2600 10 8 230 210 7.5 4500 × 1300 × 1350 5200
DH3 25/13 2600 13 10 270 250 10 4650 × 1350 × 1450 5900
DH3 25/16 2600 16 13 300 270 15 4950 × 1600 × 1650 7900
DH3 25/20 2600 20 16 330 300 20 4700 × 1850 × 1800 9700
DH3 25/25 2600 25 20 360 330 25 4850 × 1850 × 1900 12200
DH3 25/30 2600 30 25 390 360 25 5350 × 1950 × 2130 15000
DH3 25/40 2600 40 30 430 390 30 5500 × 2150 × 2150 19200
DH3 25/45 2600 45 35 460 420 35 5550 × 2200 × 2350 26500
DH3 25/50 2600 50 40 510 460 40 5650 × 2300 × 2400 28000
DH3 25/60 2600 60 50 540 510 40 5800 × 2800 × 2900 35000
DH3 30/06 3100 6 6 210 190 7.5 4900 × 1150 × 1080 4400
DH3 30/08 3100 8 6 230 210 7.5 5100 × 1300 × 1400 6100
DH3 30/10 3100 10 8 270 250 15 5500 × 1400 × 1500 8000
DH3 30/13 3100 13 10 300 270 15 5600 × 1600 × 1850 9300
DH3 30/16 3100 16 13 330 300 20 5600 × 1600 × 1800 11500
DH3 30/20 3100 20 16 360 330 25 5600 × 1650 × 1900 14000
DH3 30/25 3100 25 20 390 360 25 5750 × 1950 × 2100 17500
DH3 30/30 3100 30 25 430 390 35 6050 × 2150 × 2200 23500
DH3 30/40 3100 40 30 460 420 35 6250 × 2550 × 2300 31000
DH3 30/45 3100 45 35 510 460 40 6250 × 2550 × 2300 33500
DH3 30/50 3100 50 40 540 500 45 6650 × 2950 × 3000 43000

FAQs

1. What is a 3-Roll Hydraulic Plate Bending Machine?

A 3-Roll Hydraulic Plate Bending Machine is used to bend metal plates into round, curved, and cylindrical shapes. It uses three rollers, with hydraulic movement to help position and bend the plate.

The machine can be used for bending materials such as mild steel, stainless steel, and other metal plates, depending on the machine capacity and material thickness.

It offers controlled plate bending, easy handling of different plate sizes, and consistent results. The hydraulic system also makes roller movement easier during the bending process.

These machines are commonly used in fabrication shops and industries that make tanks, pipes, cylinders, structural parts, and other curved metal components.

The machine should be selected based on plate thickness, plate width, material type, bending diameter, and required production capacity. These points help determine the suitable machine size and specifications.
