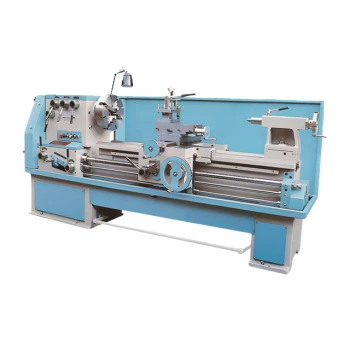

All-Geared Lathe Machine

All-Geared Lathe Machine Manufacturer

Devraj Engineering is an All Geared Lathe Machine Manufacturer offering industrial machines designed for accurate and efficient machining of metal components. Established in 1971, the company manufactures and supplies industrial equipment for engineering and metalworking requirements.

An all-geared design provides geared transmission between the spindle and drive system, making the machine suitable for different machining operations. These machines can be used for turning, facing, threading, drilling, boring, and other general machining requirements.

All Geared Lathe Machine Supplier

Devraj Engineering supplies machines for engineering workshops, manufacturing units, automobile industries, repair facilities, tool rooms, and general metalworking operations.

The machines can be used for machining materials such as mild steel, stainless steel, cast iron, aluminium, and other metals. Machine specifications can be selected according to work-piece size, machining requirements, production volume, and workshop needs.

Features

Heavy-duty and rigid
machine construction

Geared transmission system
for efficient power transfer

Smooth and reliable
spindle operation

Accurate and
consistent machining

Suitable for different
machining operations

Supports turning, facing, threading,
drilling, and boring

Suitable for different
workpiece sizes

Durable components for
regular industrial use

Suitable for various
metal materials

Easy operation
and maintenance

Suitable for workshop and
industrial applications

Applications

Model Bed Length Width of Bed Height of Center Swing over Bed Swing over Cross Slide Swing in Gap Admit Between Centers No. of Spindle Speeds RPM Range Spindle Hollow Metric Threads With Worth Threads TPI D.P. Threads No of Feeds Range of Long Feed Range of Transverse Feed Electric Motor Hp/Rpm
SGL6 65ft 375mm 300mm 600mm 325mm 865mm 1000mm 8 30-720 65mm 1-14mm 2-30TPI 6-80DP 30 0.2 to 3.0mm 0.033 to 0.50 3*1440
SGL8 8.15ft 450mm 400mm 800mm 530mm 1200mm 1300mm 9 30-720 90mm 1-14mm 2-30TPI 6-80DP 30 0.2 to 3.0mm 0.033 to 0.50 5*1440
SGL10 10 ½ ft 500mm 450mm 900mm 610mm 1300mm 1800mm 8 25-475 105mm 1-14mm 2-30TPI 6-80DP 30 0.2 to 3.0mm 0.033 to 0.50 7.5*1440
SGL12 12ft 550mm 500mm 1000mm 660mm 1350mm 2000mm 8 25-275 103mm 1-14mm 2-30TPI 6-80DP 30 0.2 to 3.0mm 0.033 to 0.50 7.5*1440
SGL14 1411ft 600mm 550mm 1100mm 710mm 1500mm 2500mm 8 25-275 103mm 1-14mm 2-30TPI 6-80DP 30 0.2 to 3.0mm 0.033 to 0.50 10*1440

FAQs

1. What is an all-geared lathe machine used for?

An all-geared lathe machine is used to shape and machine different metal parts. It is suitable for jobs such as turning, facing, threading, drilling and boring.

An all-geared lathe machine uses gears to transfer power to the spindle. The metal part is held securely while the cutting tool removes material to achieve the required shape and size.

It can be used to machine materials such as mild steel, stainless steel, cast iron and aluminium. The material suitable for machining depends on the type of job and the cutting requirements.

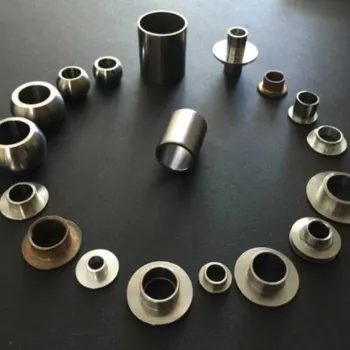

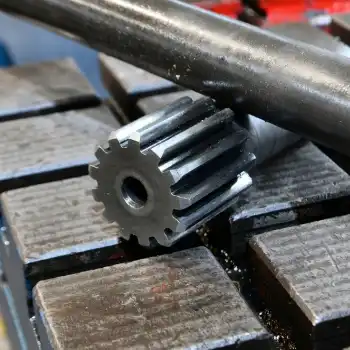

All-geared lathe machines are used for making shafts, bushes, cylindrical parts and automobile components. They are also useful for repair work and general engineering jobs.

These machines are commonly found in engineering workshops, manufacturing units, tool rooms, automobile industries and repair and maintenance facilities.
