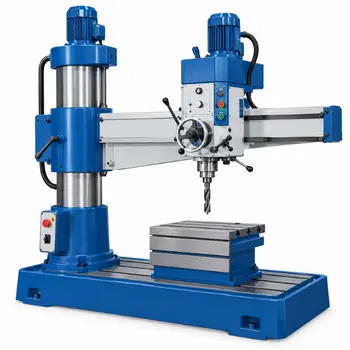

Radial Drill Machine Manufacturer
Devraj Engineering is a Radial Drill Machine Manufacturer offering heavy-duty drilling machines designed for machining large and heavy metal components. The radial drill machine allows the drilling head to move over different areas of the metal part, which is useful when moving the component from one position to another is difficult.
The machine can be used for drilling, tapping, cutting, and other related machining work on materials such as steel and cast iron. Its strong construction makes it suitable for regular use in demanding industrial conditions.
Radial Drill Machine Supplier
Devraj Engineering supplies Radial machines that provide industrial drilling equipment for factories, engineering workshops, tool rooms, and manufacturing units since 1971. The all-gear design helps transfer power smoothly and keeps the machine running steadily during regular industrial use.
Features
Heavy-duty construction fo
industrial applications
All-gear
drive mechanism
Smooth and efficient
power transmission
Suitable for large
and heavy metal part
Adjustable radial arm
and drilling head
Suitable for drilling, tapping,
cutting, and machining operations
Designed for accurate
and deep-hole drilling
Suitable for steel, cast iron,
and other metals
Reliable performance during
continuous operation
Suitable for workshops,
factories, and tool rooms
Applications

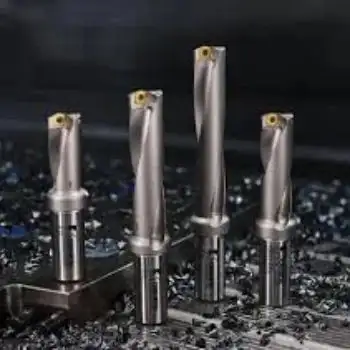

Drilling holes in large metal components
Deep-hole drilling
Tapping operations
Cutting and related machining work
Heavy engineering components
Steel and cast-iron components
Machinery and fabrication work
Workshop and maintenance operations
| Model | Table Size (mm) | Longitudinal Travel (mm) | Cross Travel (mm) | Vertical Travel (mm) | Spindle Speed (RPM) | Spindle Taper | Main Motor (HP) | Overall Height (mm) | Approx. Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| RM-1 | 900 x 200 | 400 | 200 | 400 | 75 - 1200 | ISO 40 | 2 | 1800 | 950 |
| RM-2 | 1200 x 275 | 500 | 250 | 450 | 60 - 1500 | ISO 40 | 3 | 1900 | 1200 |
| RM-3 | 1400 x 300 | 600 | 300 | 500 | 50 - 1600 | ISO 50 | 5 | 2100 | 1500 |
| RM-4 | 1600 x 350 | 700 | 350 | 550 | 40 - 1800 | ISO 50 | 7.5 | 2250 | 1800 |
| RM-5 | 1800 x 400 | 800 | 400 | 600 | 35 - 2000 | ISO 50 | 10 | 2400 | 2100 |
FAQs
1. What is a Radial Drill Machine?
A Radial Drill Machine is used to drill holes in large and heavy metal parts. It can also be used for tapping, cutting and other machining jobs.
2. How does a Radial Drill Machine make it easier to machine large parts?
The drilling head moves along the radial arm and can be placed over different areas of the metal part and this avoids moving the part each time a hole needs to be drilled.
3. What materials can be machined using a Radial Drill Machine?
A Radial Drill Machine can be used on steel, cast iron, other metals and the cutting tool and machine settings can be changed according to the material and the job.
4. What industries use Radial Drill Machines?
They are used in engineering workshops, manufacturing plants, fabrication units, tool rooms and heavy machinery industries. They are also used for workshop maintenance work.
5. What operations can be performed on a Radial Drill Machine?
A Radial Drill Machine can be used for drilling, deep-hole drilling, tapping and cutting. It can also handle related machining work on large and heavy components.
