Plano Miller Machine

Plano Miller Machine Manufacturer

Devraj Engineering is a Plano Miller Machine Manufacturer offering machines for machining large and heavy metal components. Since 1971, the company manufactures and supplies industrial machinery for engineering and metalworking requirements.

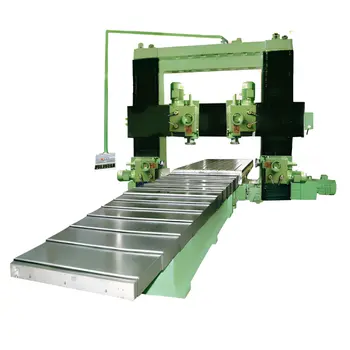

It has a strong two-column structure with a large table that supports heavy components during machining. It can be used for jobs such as facing, slotting and angular machining on large surfaces. The table moves along the length of the machine while the cutting heads carry out the required machining work.

Plano Miller Machine Supplier

Devraj Engineering supplies machines for heavy engineering and other industries where large components need stable and accurate machining. The machine is available in different models, with table sizes and working dimensions suited to different component requirements.

The standard setup includes a milling head on the cross rail, table feed drive gearbox, cross feed drive gearbox, lift feed drive gearbox and control panel. Optional arrangements include a boring head, an additional milling head and a side-column milling head.

Features

Strong two-column
construction

Large worktable
for heavy components

Rugged
machine design

Smooth table
movement

Accurate horizontal and
vertical movement of cutting heads

Suitable for large
surface machining

Can perform facing
and slotting operations

Suitable for angular
machining

High metal
removal capacity

Long service
life

Low maintenance
requirement

Different machine
sizes available

Applications

Model No. Length of Stroke Width between Columns Height under Cross Rail Face of Cross Rail Face of Columns Width of Table No. of Table Feeds Table Feed for Milling per Minute Table Rapid Feed per Minute
SPM-120 1800 to 15000 as per Order/Requirement 1200mm 1200mm 450mm 325mm 875mm Stepless Infinitely Variable Speeds with AC Variable Frequency Drive 10mm 20 to 300mm
SPM-150 1800 to 15000 as per Order/Requirement 1500mm 1500mm 450mm 325mm 1050mm Stepless Infinitely Variable Speeds with AC Variable Frequency Drive 10mm 600mm
SPM-180 1800 to 15000 as per Order/Requirement 1800mm 1500mm 550mm 450mm 1200mm Stepless Infinitely Variable Speeds with AC Variable Frequency Drive 10mm 600mm
SPM-210 1800 to 15000 as per Order/Requirement 2100mm 1800mm 600mm 500mm 1400mm Stepless Infinitely Variable Speeds with AC Variable Frequency Drive 10mm 600mm
SPM-250 1800 to 15000 as per Order/Requirement 2500mm 1800mm 650mm 500mm 1500mm Stepless Infinitely Variable Speeds with AC Variable Frequency Drive 10mm 600mm
SPM-300 1800 to 15000 as per Order/Requirement 3000mm 2100mm 700mm 500mm 1800mm Stepless Infinitely Variable Speeds with AC Variable Frequency Drive 10mm 600mm

FAQs

1. What is a Plano Miller Machine?

A Plano Miller Machine is a large milling machine used for machining heavy and oversized metal components. It is mainly used for work such as facing, slotting and machining large surfaces.

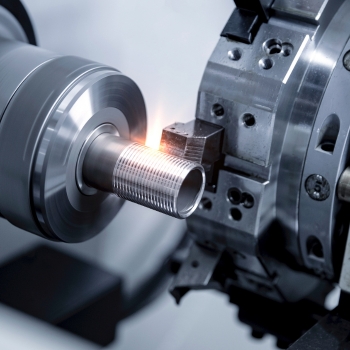

It can be used for facing, slotting and angular machining. The machine is also suitable for machining large surfaces on heavy components.

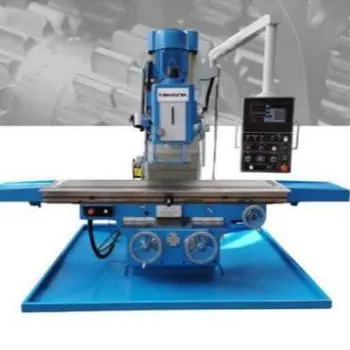

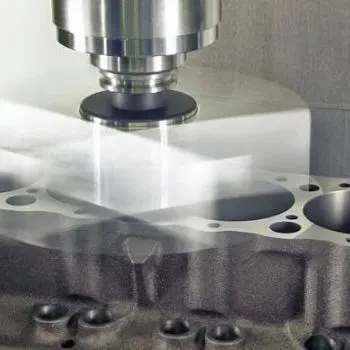

This machine can be used for large components such as engine blocks, structural parts and machine tool beds. The suitable machine model depends on the size and weight of the component.

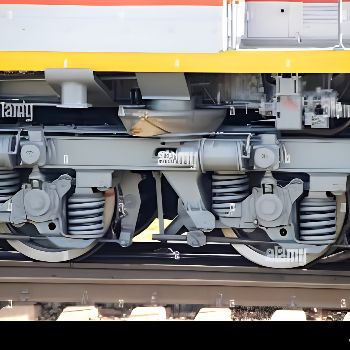

They are used in heavy engineering, railway, defence, machine tool manufacturing and other industries where large and heavy components need to be machined.

The size of the component, table width, distance between columns, required machining stroke and height under the cross rail should be considered. The machine size should match the dimensions of the
