4-Roll Plate Bending Machine Manufacturer
Devraj Engineering is a 4-Roll Plate Bending Machine Manufacturer offering industrial plate rolling equipment for bending and forming metal plates. The four-roller arrangement provides controlled plate positioning and supports accurate cylindrical and conical rolling for different fabrication requirements.
4-Roll Plate Bending Machine Supplier
4-Roll Plate Bending Machine Supplier, Devraj Engineering supplies plate rolling machines for fabrication workshops, pressure vessel manufacturing, heavy engineering, construction, piping, and other metalworking industries. The machine can be selected according to the required plate thickness, width, diameter, and production requirements.
Features
Four-roller configuration for
controlled plate movement
Heavy-duty and rigid
machine construction
Suitable for cylindrical and conical bending
Controlled roller movement
for accurate plate forming
Hydraulic operation for
smooth adjustment
Suitable for different plate
thicknesses and widths
Reduced plate slipping
during rolling
Consistent
bending results
Suitable for heavy-duty
industrial work
Designed for efficient plate
loading and positioning
Suitable for regular
fabrication operations
Applications
Metal plate rolling
Cylindrical shell fabrication
Conical plate forming
Pressure vessel manufacturing

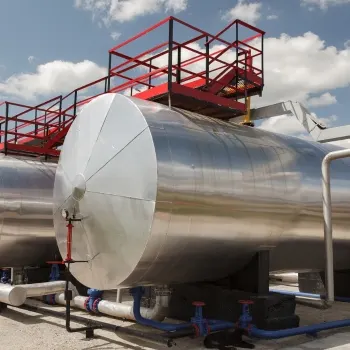

Tank manufacturing
Pipe and shell fabrication
Steel structure fabrication
Heavy engineering
Construction equipment manufacturing
Piping and process equipment fabrication
General metalworking applications
| Model No. | Length of Working (mm) | Pre-Thickness Bending (mm) | Max. Thickness (mm) | Top Roll (mm) | Bottom Roll (mm) | Side Rolls (mm) | Motor Power (HP) | Packing Dimension (mm) (L × H × W) | Machine Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| DH4 20/60 | 2100 | 4 | 6 | 160 | 140 | 120 | 5 | 4100 × 1050 × 1150 | 2400 |
| DH4 20/8 | 2100 | 6 | 8 | 190 | 170 | 150 | 5 | 4100 × 1050 × 1150 | 2400 |
| DH4 20/10 | 2100 | 8 | 10 | 210 | 190 | 170 | 5 | 4100 × 1050 × 1150 | 2400 |
| DH4 20/13 | 2100 | 10 | 13 | 230 | 210 | 190 | 5 | 4100 × 1050 × 1150 | 2400 |
| DH4 20/16 | 2100 | 13 | 16 | 270 | 250 | 210 | 5 | 4100 × 1050 × 1150 | 2400 |
| DH4 20/20 | 2100 | 16 | 20 | 300 | 270 | 210 | 5 | 4100 × 1050 × 1150 | 2400 |
| DH4 20/25 | 2100 | 20 | 25 | 330 | 300 | 240 | 5 | 4100 × 1050 × 1150 | 2400 |
| DH4 20/30 | 2100 | 25 | 30 | 360 | 330 | 250 | 5 | 4100 × 1050 × 1150 | 2400 |
| DH4 20/40 | 2100 | 30 | 40 | 390 | 360 | 300 | 5 | 4100 × 1050 × 1150 | 2400 |
| DH4 20/45 | 2100 | 35 | 45 | 430 | 390 | 360 | 5 | 4100 × 1050 × 1150 | 2400 |
| DH4 20/50 | 2100 | 40 | 50 | 460 | 420 | 390 | 5 | 4100 × 1050 × 1150 | 2400 |
| DH4 20/60 | 2100 | 50 | 60 | 510 | 460 | 440 | 5 | 4100 × 1050 × 1150 | 2400 |
| DH4 20/70 | 2100 | 60 | 70 | 540 | 510 | 150 | 5 | 4100 × 1050 × 1150 | 2400 |
| DH4 25/06 | 2600 | 4 | 6 | 190 | 170 | 170 | 5 | 4100 × 1050 × 1150 | 2400 |
| DH4 25/08 | 2600 | 6 | 8 | 210 | 190 | 190 | 5 | 4100 × 1050 × 1150 | 2400 |
| DH4 25/10 | 2600 | 8 | 10 | 230 | 210 | 210 | 5 | 4100 × 1050 × 1150 | 2400 |
| DH4 25/13 | 2600 | 10 | 13 | 270 | 250 | 210 | 5 | 4100 × 1050 × 1150 | 2400 |
| DH4 25/16 | 2600 | 13 | 16 | 300 | 270 | 240 | 5 | 4100 × 1050 × 1150 | 2400 |
| DH4 25/20 | 2600 | 16 | 20 | 330 | 300 | 250 | 5 | 4100 × 1050 × 1150 | 2400 |
| DH4 25/25 | 2600 | 20 | 25 | 360 | 330 | 300 | 5 | 4100 × 1050 × 1150 | 2400 |
| DH4 25/30 | 2600 | 25 | 30 | 390 | 360 | 360 | 5 | 4100 × 1050 × 1150 | 2400 |
| DH4 25/40 | 2600 | 30 | 40 | 430 | 390 | 3 | 5 | 4100 × 1050 × 1150 | 2400 |
| DH4 25/45 | 2600 | 35 | 45 | 460 | 420 | 360 | 5 | 4100 × 1050 × 1150 | 2400 |
| DH4 25/50 | 2600 | 40 | 50 | 510 | 460 | 390 | 5 | 4100 × 1050 × 1150 | 2400 |
| DH4 25/60 | 2600 | 50 | 60 | 540 | 510 | 440 | 5 | 4100 × 1050 × 1150 | 2400 |
| DH4 30/06 | 3100 | 4 | 6 | 210 | 190 | 170 | 5 | 4100 × 1050 × 1150 | 2400 |
| DH4 30/08 | 3100 | 6 | 8 | 230 | 210 | 190 | 5 | 4100 × 1050 × 1150 | 2400 |
| DH4 30/10 | 3100 | 8 | 10 | 270 | 250 | 210 | 5 | 4100 × 1050 × 1150 | 2400 |
| DH4 30/13 | 3100 | 10 | 13 | 300 | 270 | 210 | 5 | 4100 × 1050 × 1150 | 2400 |
| DH4 30/16 | 3100 | 13 | 16 | 330 | 300 | 240 | 5 | 4100 × 1050 × 1150 | 2400 |
| DH4 30/20 | 3100 | 16 | 20 | 360 | 330 | 250 | 5 | 4100 × 1050 × 1150 | 2400 |
| DH4 30/25 | 3100 | 20 | 25 | 390 | 360 | 300 | 5 | 4100 × 1050 × 1150 | 2400 |
| DH4 30/30 | 3100 | 25 | 30 | 430 | 390 | 330 | 5 | 4100 × 1050 × 1150 | 2400 |
| DH4 30/40 | 3100 | 30 | 40 | 460 | 420 | 360 | 5 | 4100 × 1050 × 1150 | 2400 |
| DH4 30/45 | 3100 | 35 | 45 | 510 | 460 | 390 | 5 | 4100 × 1050 × 1150 | 2400 |
| DH4 30/50 | 3100 | 40 | 50 | 540 | 500 | 440 | 5 | 4100 × 1050 × 1150 | 2400 |
FAQs
1. What is a Plate Bending Machine used for?
A Plate Bending Machine is used to bend metal plates into round, curved, cylindrical, or conical shapes. It is used for different metalworking and fabrication jobs.
2. What types of plates can be bent using this machine?
The machine can be used for bending different metal plates, depending on their thickness, width, and material. The suitable machine model depends on the type of plate being processed.
3. What types of Plate Bending Machines are available?
Different types of plate bending machines are available, including 3-Roll and 4-Roll models. Each type is suited to different plate bending requirements.
4. Where are Plate Bending Machines used?
These machines are used for plate rolling, cylindrical shell making, conical forming, tank manufacturing, pressure vessel work, pipe fabrication, and other metalworking applications.
5. How can the right Plate Bending Machine be selected?
The plate thickness, working width, required diameter, material, and type of bending work should be checked before buying a machine. These details help in selecting the right model for the job.
